Octo-Cable For Meridian Edge

Name: Octo-Cable For Meridian Edge
Brand: ReefBreeders.com
SKU: DAISY-OCTO
Price: 49.99 USD
Availability: InStock

$49.99 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Octo-Cable

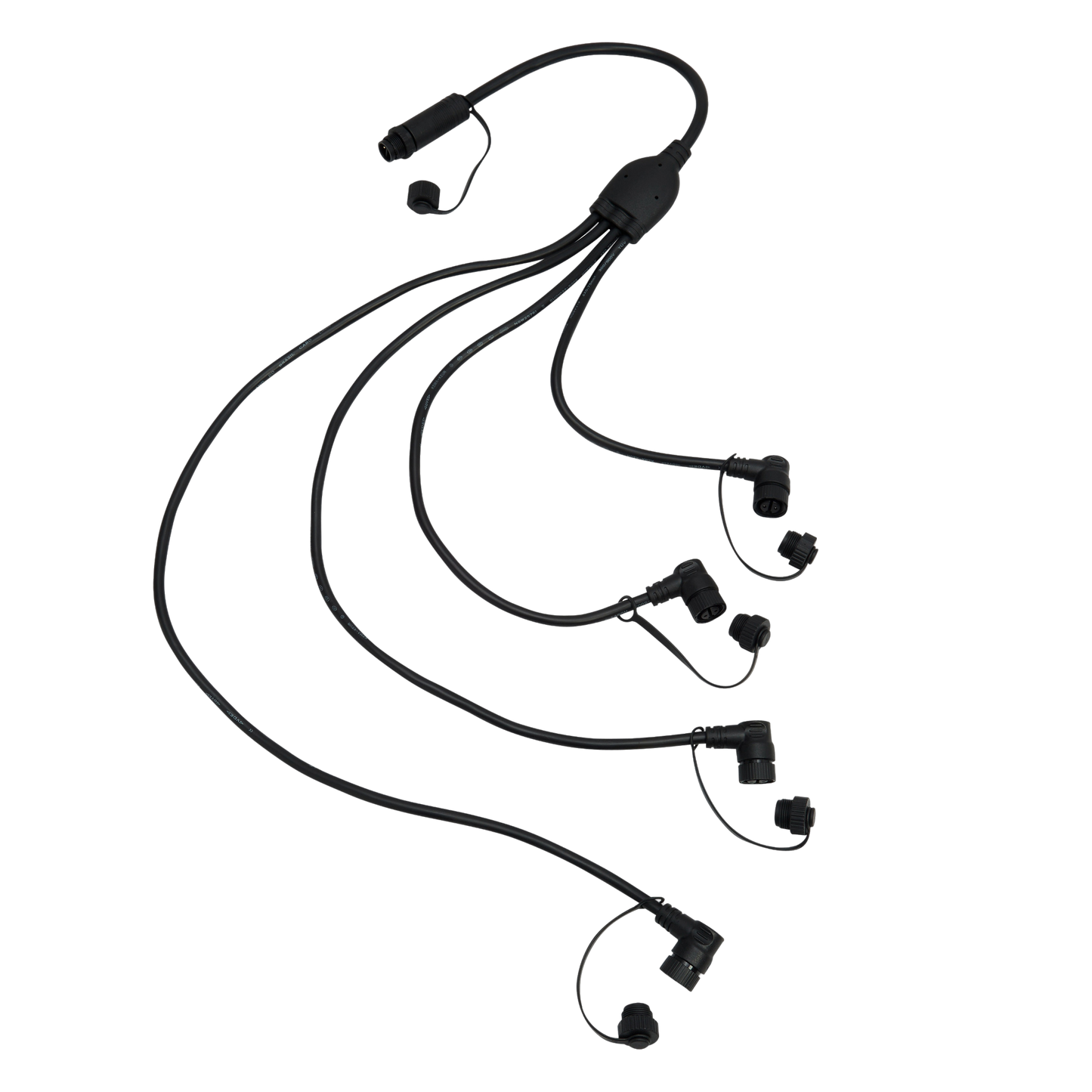

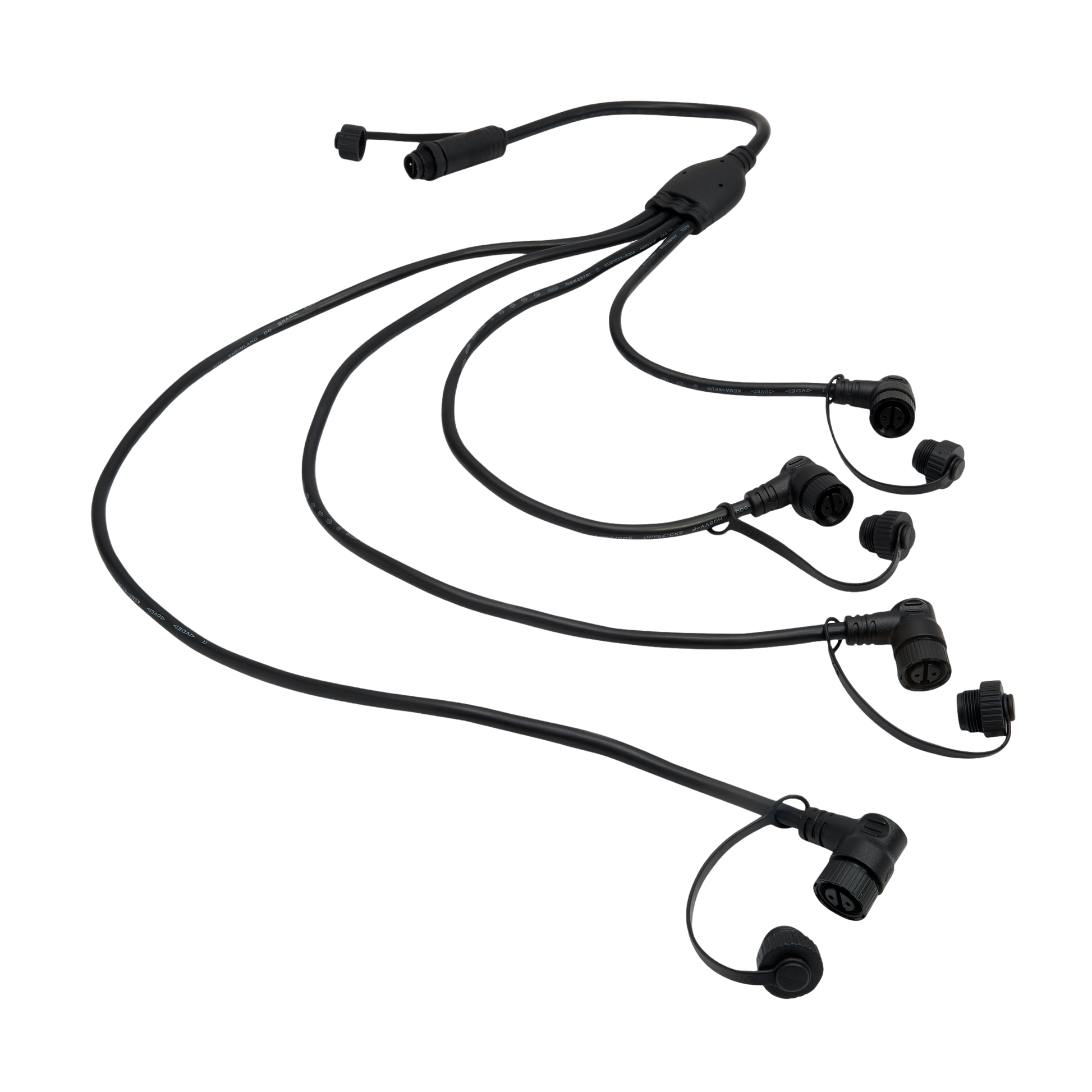

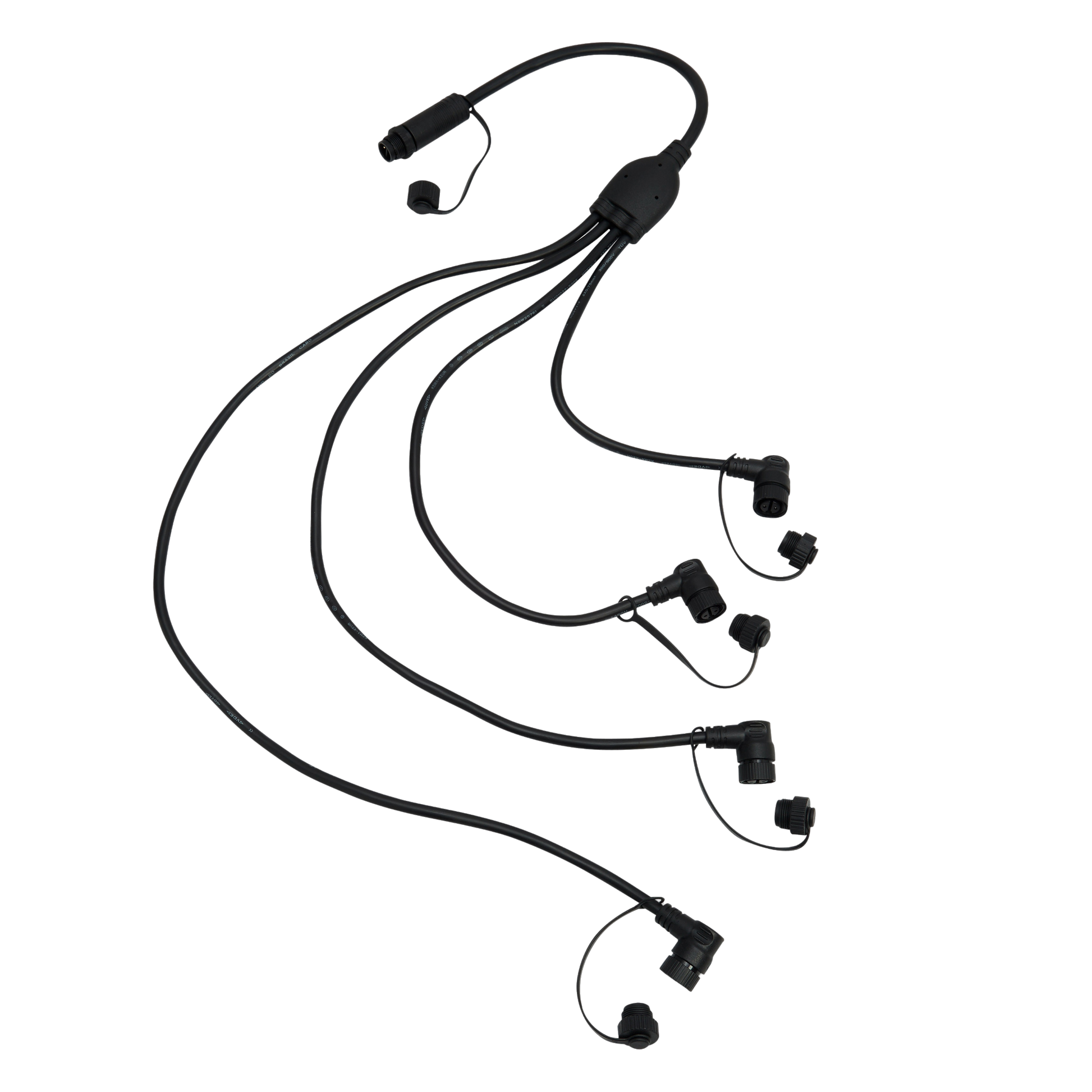

The Meridian Octo-Cable is designed to connect up to 4 Meridian Edges or Meridians to a single power supply. Each port has a screw-on cap to seal them off when not in use.

Please note that the default power supply included with your Edge bar is not sufficient to power multiple edge bars- an upgraded power supply is required to do so.

Daisy Chain Cable Options:

•Daisy Chain Cable 24" (60cm): Connect multiple Meridian lights perpendicular to the front of your aquarium. Example: up to 8 Meridian-11 lights (75 W each) using a 600 W power supply.

•Meridian to 2 Edge Bar Daisy Chain Cable: Connect one Meridian to two Edge bars. This setup cannot include additional Meridians.

•Octo-Cable (4-Way): Connect multiple Edge bars (up to four) to one cable and one power supply, allowing a streamlined single plug connection.

Always verify the total wattage aligns with your selected power supply for optimal performance and safety.

Light	Max Power Draw	Power Supply Required	Parts Required
Edge 12 x 4	120watts	150watts	Octo-Cable
Edge 24 x 4,	240watts	300watts	Octo-Cable
Edge 35 x 4	360watts	450watts	Octo-Cable
Edge 45 x 4	480watts	600watts	Octo-Cable
Edge 63 x 4	600watts	600watts	Octo-Cable
